Product description
¹) Z1 is with captive washer, dimensions according to DIN 6902-A (+/- DIN 125). Useful length is shaftlength reduced by ring thickness.
Sales unit per 500
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | 7985Z14Z |

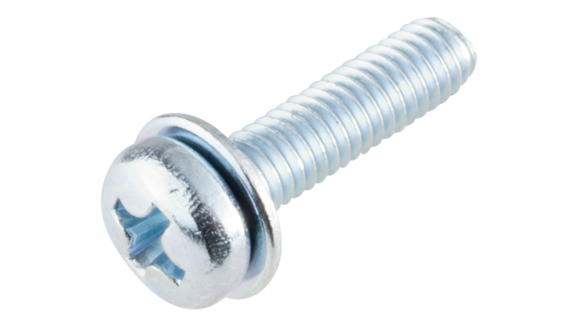

| Article group description | Pan head screws with Phillips cross recess (H) and non loosable washer |
| Material | Steel,class 4.8,Zi.plated |
| Item number | 7985Z14Z0050010 |
| Variantnumber name | M 5 X 10 |
Product information
| DIN number | 7985Z1 |
| Factory number | Z1, BN 1719 |
| Drive | Phillips cross recessed |
| Thread | Metric |
| Class | 4.8 |
| Headshape | Pan |
| Discount group | PD001 |
| Material | Steel |
| Finish | Zinc plated |
Specifications
| Head diameter | 10 |
| Head height | 3.8 |
| Cross recess number | 2 |
| Metric | M 5 |
| Ring diameter | 10 |
| Ring thickness | 1 |
| Shaftlength | 10 |
URL
https://www.nederland.bossard.com/en/metric-fasteners/torx-and-recess-head-screws/pan-head-screws-cross-recess/7985z14z0050010
Pan head screws with Phillips cross recess (H) and non loosable washer Date: 8/11/2025
