Product description
We supply with head dimensions according to DIN 7985 and not according to ISO 7045. For deviating head dimensions according to ISO 7045: see Technical Data.
Sales unit per 1000
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | 7985004Z |

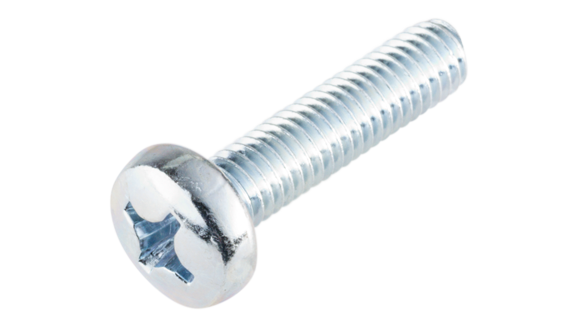

| Article group description | Pan head screws with Phillips cross recess (H) |
| Material | Steel,class 4.8,Zi.plated |
| Item number | 7985004Z0030003 |
| Variantnumber name | M 3 X 3 |
Product information
| DIN number | 7985H |
| ISO number | 7045H |
| Factory number | BN 384 |
| Drive | Phillips cross recessed |
| Thread | Metric |
| Class | 4.8 |
| Headshape | Pan |
| Discount group | PD001 |
| Material | Steel |
| Finish | Zinc plated |
Specifications
| Head diameter | 6 |
| Head height | 2.4 |
| Cross recess number | 1 |
| Metric | M 3 |
| Shaftlength | 3 |
URL
https://www.nederland.bossard.com/en/metric-fasteners/torx-and-recess-head-screws/pan-head-screws-cross-recess/7985004z0030003
Pan head screws with Phillips cross recess (H) Date: 7/27/2025
