Product description
The shank length is the length of the cut portion. The tolerance on the shank length is - 0 + 0.25 mm. For fitting screws with h8 fit Unbrako quality, see Jeveka group UPS00020 For smaller diameters, see fitting screws with saw slot according to DIN 923. ISO 7379 sometimes has other non-commercial shank diameters: M 5 with shank 6,5, M 10 with shank 13, M 20 shaft 25
Sales unit per 25
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | UPSXH820 |

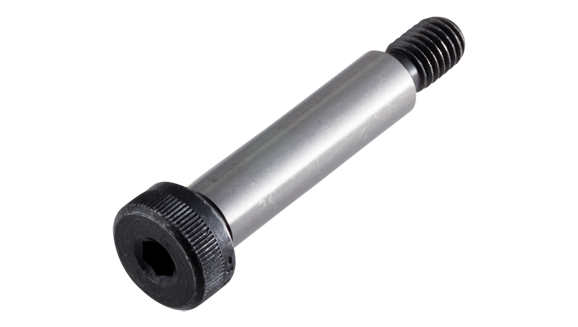

| Article group description | Socket head shoulderscrews, h8 fit |
| Material | Steel,class 012.9 |
| Item number | UPSXH8200100045 |
| Variantnumber name | M 10X 12h8X 45 |
Product information
| ISO number | 7379 |
| Factory number | UPSXH8 |
| Drive | Socket |
| Thread | Metric |
| Class | 12.9 |
| Headshape | Cilinder |
| Discount group | PD019 |
| Material | Steel |
| Finish | No finish |
Specifications
| Thread length | 16 |
| Head diameter | 18 |
| Head height | 9 |
| Metric | M 10 |
| Shaft diameter | 12h8 |
| shaft length | 45 |
| Maximum shaft | 12.000 |
| Minimum shaft | 11.973 |
| Width across flats | 6 |
