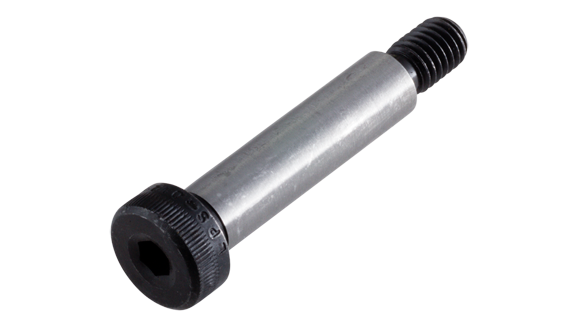

Socket head shoulderscrews, f9 fit

UPSX00200050012

Steel,class 012.9

M 5 X 6f9 X 12

Socket head shoulderscrews, f9 fit

UPSX00200050012

Steel,class 012.9

M 5 X 6f9 X 12

Product description

The shank length is the length of the cut portion. The tolerance on the shank length is - 0 + 0.25 mm. For smaller diameters, see shoulder screws with groove according to DIN 923. ISO 7379 sometimes has other non-commercial shank diameters: M 5 with shank 6.5, M 10 with shank 13, M 20 with shank 25
€80.20
Price unit 100 pc.
Sales unit per 50 pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions

General

Article group UPSX0020
Article group description Socket head shoulderscrews, f9 fit
Material Steel,class 012.9
Item number UPSX00200050012
Variantnumber name M 5 X 6f9 X 12

Product information

ISO number 7379
Factory number UPSX, BN 1359
Drive Socket
Thread Metric
Class 12.9
Headshape Cilinder
Discount group PD019
Material Steel
Finish No finish

Specifications

Thread length 9.5
Head diameter 10
Head height 4.5
Metric M 5
Shaft diameter 6f9
shaft length 12
Maximum shaft 5.990
Minimum shaft 5.960
Width across flats 3
