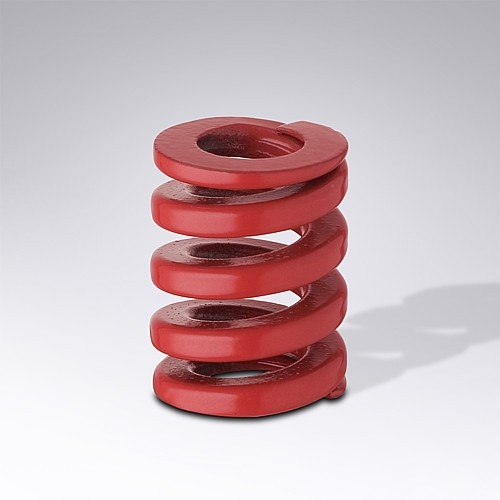

FIBRO compression spring red

F24116100400305

Steel 50CrV4

241.16.40.305

FIBRO compression spring red

F24116100400305

Steel 50CrV4

241.16.40.305

Product description

* Length and spring force (in N) at max. Spring travel, ie when the spring is fully compressed.
€50.53
Price unit 1 pc.
Sales unit per 1 pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions

General

Article group F2411610
Article group description FIBRO compression spring red
Material Steel 50CrV4
Item number F24116100400305
Variantnumber name 241.16.40.305

Product information

ISO number 10243
Factory number 241.16
Brand name FIBRO
Discount group PD039
Material Steel

Specifications

Diameter guide pin 20.0
Sleeve diameter 40.0
Length unloaded 305
Max. spring force 5916.0
Maximum deflection 116.0
Minimum length 189.0
