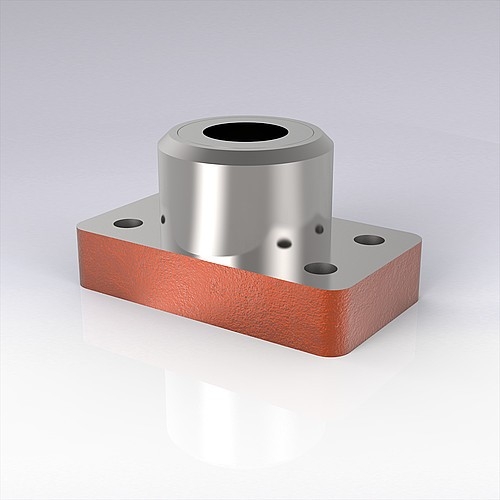

FIBRO 2031.38 guidebush flange

F03138100300000

Cast iron+Sintered metal hard.

30

FIBRO

FIBRO 2031.38 guidebush flange

F03138100300000

Cast iron+Sintered metal hard.

30

Product description

Inner diameter for column. Outside diameter = diameter of the part to be installed. Diameter = diameter of each of the four pre-drilled mounting holes. Length-width-height are dimensions of the flange
€139.45
Price unit 1 pc.
Sales unit per 1 pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions

General

Article group F0313810
Article group description FIBRO 2031.38 guidebush flange
Material Cast iron+Sintered metal hard.
Item number F03138100300000
Variantnumber name 30

Product information

Factory number 203138
Brand name FIBRO
Discount group PD039
Material Cast iron

Specifications

Inside diameter 30
Width 65
Outside diameter 62
Diameter 11
Height 23
Length 115
Total height 60
