Product description
Up to diam = 8, L = 60: material = alloy tool steel; hardness = 60 + 4HRC. V / a diam = 8, L = 80: material = 50 Cr V4 refined; core tensile strength> = 900N / mm²; surface hardness = 62 + - 2HRC; hardening depth> = 1.8 mm. * Tolerance (in µm) on the diameter for columns marked yellow, green or red.
Sales unit per 1
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | F2022310 |

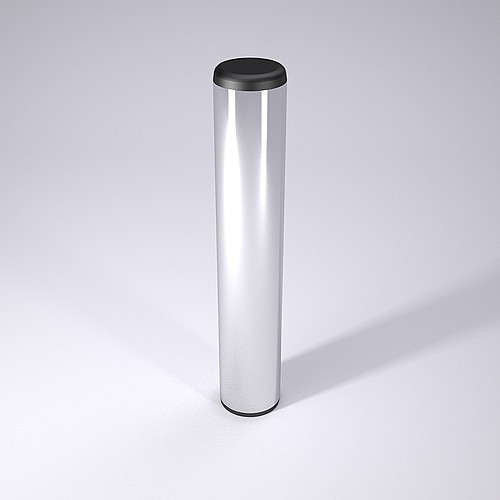

| Article group description | FIBRO guide pillar with thread |
| Material | Steel, 60 +3 HRC |
| Item number | F20223100500400 |
| Variantnumber name | 50 X 400 GRÜN |
Product information
| Factory number | 202.23 |
| Brand name | FIBRO |
| Discount group | PD039 |
| Material | Steel |
Specifications
| Tol.erance yellow * | 0» -2.5 |
| Tolerance green * | -2.5»-5 |
| Tolerance red * | -5» -8 |
| Column diameter | 50 |
URL
https://www.nederland.bossard.com/en/machine-normal-parts-fibro/guide-elements/fibro-guide-pillars/f20223100500400
FIBRO guide pillar with thread Date: 7/26/2025
