Product description
Suspension travel = theoretical maximum suspension travel = ho From 1.25mm thickness on outer and inner diam. turned or precision punched.
Sales unit per 25
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | 2093C010 |

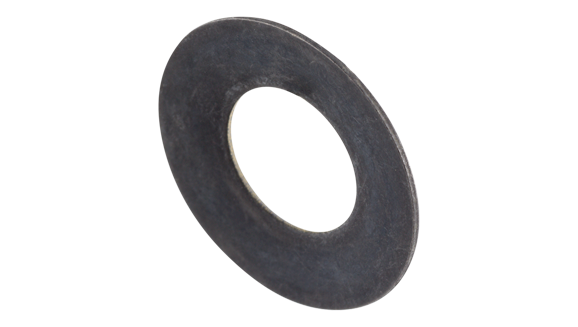

| Article group description | Disc springs, light |
| Material | Springsteel 51CrV4 (CS70 till thickness 1.25) |
| Item number | 2093C0100710000 |
| Variantnumber name | 71 X36 X2 |
Product information
| DIN number | 2093C |
| Factory number | BN 1375 |
| Class | CS70 |
| Discount group | PD025 |
| Material | Spring steel |
| Finish | No finish |
Specifications
| Inner diameter H12 | 36 |
| Outer diameter h12 | 71 |
| F in N at 0.15xho | 1895 |
| F in N at 0.45xho | 4200 |
| F in N at 0.75xho | 5143 |
| Material thickness | 2 |
| Total height | 4.6 |
| Spring compression ho | 2.6 |
