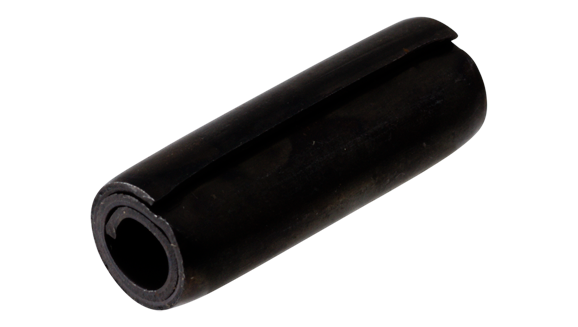

SPIROL spring pins, medium

734300100050060

Springsteel 420-545 HV 30

5 X 60

SPIROL spring pins, medium

734300100050060

Springsteel 420-545 HV 30

5 X 60

Product description

Diameter = nominal diameter = recommended hole diameter with tolerance H12. Min diameter and max diameter = unstressed diameter. Spiral clamping bush especially suitable for automatic feeding and mounting: cannot interlock. Due to the absence of slot is radial stress evenly
€28.10
Price unit 100 pc.
Sales unit per 250 pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions

General

Article group 73430010
Article group description SPIROL spring pins, medium
Material Springsteel 420-545 HV 30
Item number 734300100050060
Variantnumber name 5 X 60

Product information

DIN number 7343
ISO number 8750
Factory number BN 874
Brand name SPIROL
Discount group PD025
Material Spring steel
Finish No finish

Specifications

Diameter 5
Material thickness 0.42
Maximum diameter 5.5
Minimum diameter 5.25
Total length 60
