Product description
Diameter = nominal diameter = recommended hole diameter, fit H12 Min. and max. diameter are unstressed Application: combination possible with clamping bush or bolt / nut + washer DIN 7349 Diameter 10 and larger: 1 or 2 chamfers of choice manufacturer
Sales unit per 100
pc.
Since1831
Specialist in fasteners and tools
100,000 products in our range
Tailor-made solutions
General
| Article group | 1481001Z |

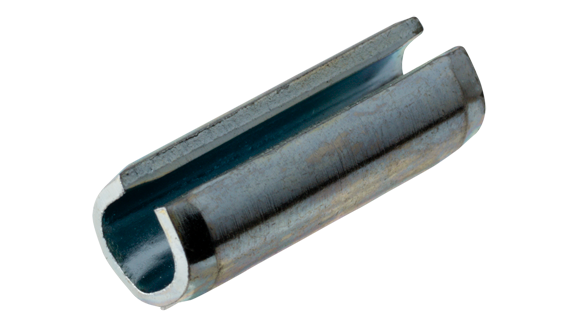

| Article group description | Slotted spring pins heavy |
| Material | Springst.420-560 HV30 zi.plat. |
| Item number | 1481001Z0060028 |
| Variantnumber name | 6 X 28 |
Product information
| DIN number | 1481 |
| ISO number | 8752 |
| Discount group | PD007 |
| Material | Spring steel |
| Finish | Zinc plated |
Specifications
| Diameter | 6 |
| Material thickness | 1.25 |
| Maximum diameter | 6.7 |
| Minimum diameter | 6.4 |
| Application | 3.5/M3 |
| Total length | 28 |
URL
https://www.nederland.bossard.com/en/fasteners-without-thread/pins-spring-pins-rivets-keys/spring-pins-and-spiral-spring-pins/1481001z0060028
Slotted spring pins heavy Date: 7/26/2025
